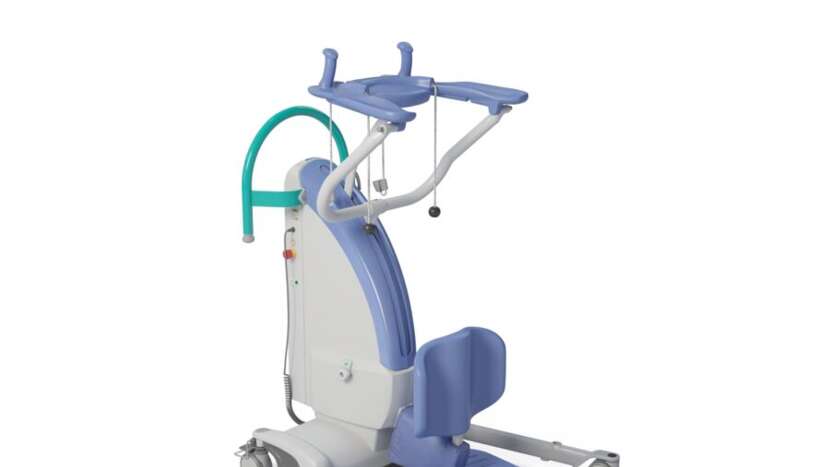

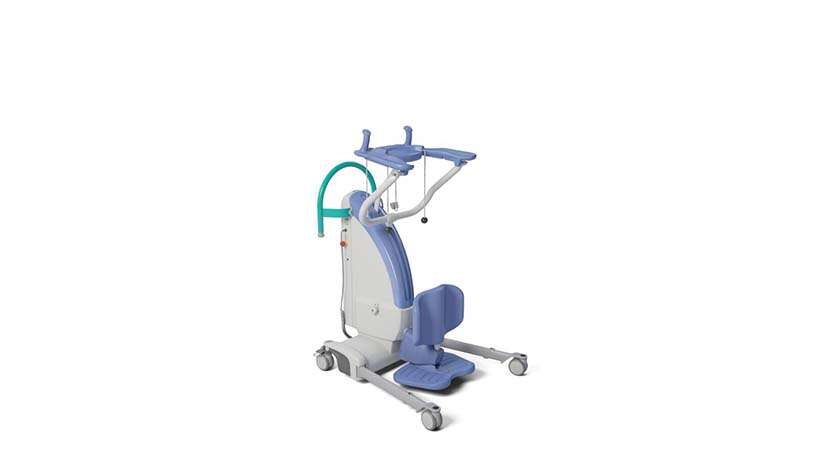

ArjoHuntleigh Sara Plus Sit to Stand Lift

The Sara Plus® sit-to-stand lift offers advanced support features that significantly promote mobility activation, providing balance, stepping, and walking training. This device enhances patient mobility through exercise and is designed for single caregiver operation, ensuring cost-effective and efficient patient care. The Sara Plus® supports balance, stepping, and gait training with a detachable footplate, pro-active knee pad, and an upper body support arc rest. Additionally, it includes optional features such as a built-in scale, making it a versatile tool for patient transfers and mobility training.

Enhancing Mobility Through Exercise:

• Detachable Footplate: Supports balance, stepping, and gait training.
• Upper Body Support: The arc rest provides additional upper body support during the raising action.
• One Caregiver Operation: Cost-effective solution for standing transfers, stepping, and gait training.

Sling Solutions:

• Designed specifically for Sara Plus.
• Provides secure attachment to the lifter, holding and supporting the patient close to the arc rest.
• Available in various types: standing, transfer/walking, and wipeable.

Optional Built-in Scale: Contributes to an easier weighing routine.

Features and Benefits:

• ARC Rest: Supports arms and upper body, aiding in weight support through shoulders and feet.
• Pro-Active Pad: Provides knee support and stability, allowing natural forward movement.
• Detachable Footplate: Enables stepping and gait training with feet directly on the floor.
• Dual Controls: Ensures easy operation.

Specifications:

• Product Information:

  • Max Safe Working Load: 420 lbs (190 kg)
  • Lift Weight (incl battery): 173.5 lbs (78.7 kg)
  • Min Total Storage Height: 47 in (1195 mm)
  • Min Lifting Height: 35 5/8 in (906 mm)
  • Max Lifting Height: 58 7/8 in (1497 mm)
  • External Width (legs closed): 25 3/8 in (646 mm)
  • External Width (legs open): 44 in (1107 mm)
  • Internal Width (legs closed): 21 in (534 mm)
  • Internal Width (legs open): 39 3/8 in (1002 mm)
  • Leg Clearance (floor to top of legs): 4 1/5 in (116 mm)
  • Chassis Clearance (floor to bottom of chassis): 1 1/5 in (30 mm)
  • Lift Total Length: 40 5/8 in (1033 mm)
  • Turning Radius: 48 5/8 in (1235 mm)

• Electrical:

  • Lifter Protection Class: IPX4
  • Hand Control Protection Class: IPX7
  • Battery: 24V 6Ah
  • Battery Charge Indicator: Yes
  • Service Meter: Displays total usage time (hours)
  • Emergency Stop and System Failure Override: Yes
  • Automatic Safety Cut Out: Activates if lowered onto an obstacle
  • Low Friction Castors: Rear two with brakes
