Chattanooga OptiFlex S Shoulder CPM, image 2

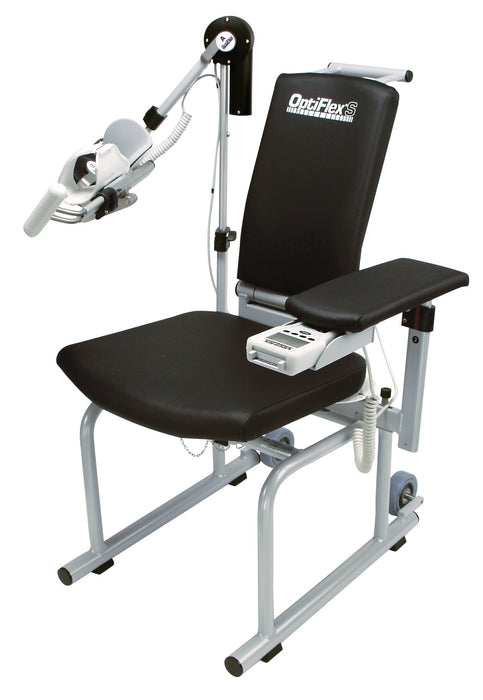

Chattanooga OptiFlex S Shoulder CPM

$5,999.00 - $5,999.00
$5,999.00
$5,999.00 - $5,999.00
$5,999.00

Customer will need to provide prescriptions for respiratory devices.

For Sold Out products, please contact us for more information/replacement parts.

Phone#: +1 (818)-986-9833

  • Description
  • Specification
  • Resources

The Chattanooga OptiFlex S Shoulder CPM moves the shoulder through several planes from one universal left/right unit. It has synchronized motors, a chip card hand control, a rest for the other arm and an adjustable chair that folds for transport.

For use by health professionals.

Features

  • Fully synchronized motors
  • One unit for left or right shoulder
  • Hand control saves settings to a memory chip card
  • Rest for the uninvolved arm
  • Fully adjustable chair that folds for transport
  • Includes a patient data card and erasable pen

Specifications

  • Chattanooga item: 2029
  • Abduction/adduction: 0° to 30° to 175°
  • Internal/external rotation: 90° to 0° to 90°
  • Flexion/extension: 0° to 30° to 175°
  • Horizontal abduction/adduction: 0° to 125°
  • Speed: 0 to 100%
  • Timer: 1 to 300 minutes
  • Unit weight: 55 lb (25 kg)
  • Dimensions: 34.4 in x 22.6 in x 22.8 in; folded: 14.6 in x 22.6 in x 22.8 in

Specifications

Weight 55 lbs.
Shipping Weight 100 lbs.
Length 22.6″
Wdith 22.8″
Height 34.4″
Mains Power 100-240V, 50/60 Hz, 33 VA
Safety Tests IEC 60601-1, EN60601-1-2, CSA 601.1-M90, UL 2601-1 CE 0297
Electrical Class Class 1. Type B
Adduction/Abduction 0 - 30 - 175°
Internal/External Rotation 90 - 0 - 90°
Flexion/Elevation 0 - 30 - 175°
Horizontal Adduction/Abduction 0 - 0 - 126°
Speed 0 - 100%
Pauses 0 - 30 seconds
Timer 1 - 300 minutes
Reverse-on-load 1 - 20 Kp of force (Kp = 2.2 lbs. of force)
Warm-up Mode 50% of programmed ROM
Therapy Run Time h:m
Synchronization On/off
Motor Control On/off
Warranty Limited Two-Year Warranty

Features

  • Easy-to-use hand control for storing treatment data on memory chip card
  • Allows for customizable treatment parameters
  • Ergonomic armrest for healthy arm
  • Patented universal left/right shoulder design
  • Folds easily for transport/shipping
  • Lightweight design
  • Free Shipping
