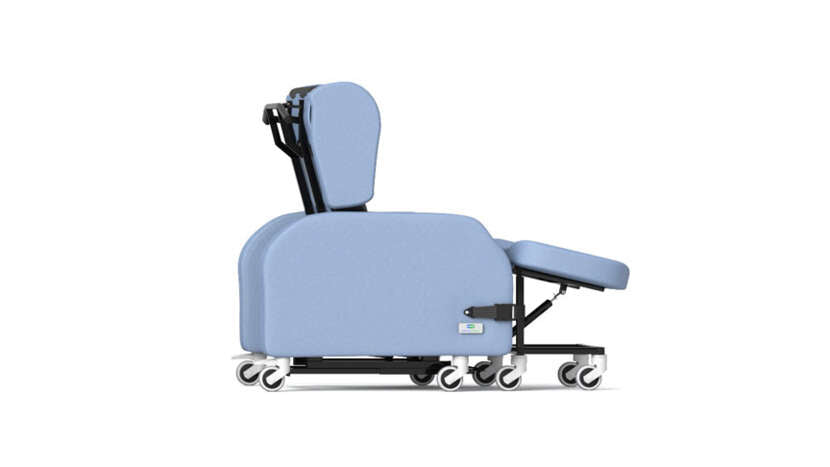

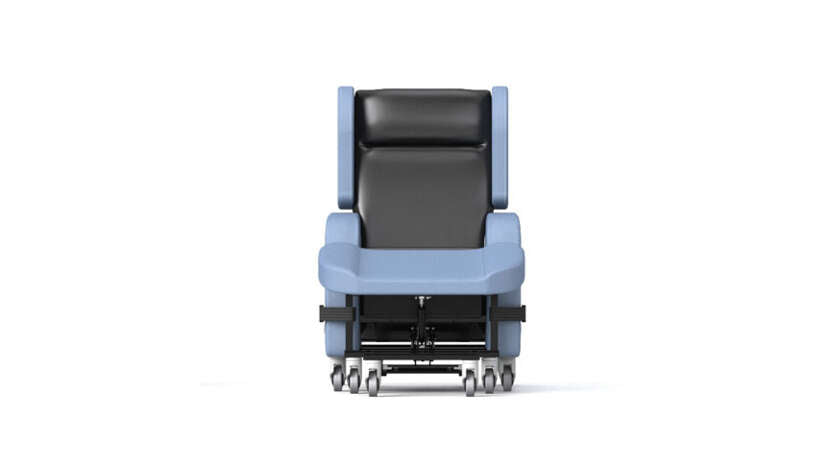

ArjoHuntleigh Atlanta Therapeutic Chair

The Atlanta™ Therapeutic Chair provides a robust and durable seating solution for individuals with vigorous involuntary movements, reducing the risk of falls. Originally designed for patients with Huntington’s disease, it is also widely used for patients with late-stage dementia. This chair is strong, stable, and effective in managing lower limb edema, accommodating individuals with tight hamstrings and contracted legs.

Key Features:

• Safety and Stability: Designed to withstand rigorous use and prevent falls.
• Pressure Management: Variable angle leg rest and integrated tilt and recline for fluid drainage.
• Ease of Use: Adjustable on-site without tools in less than one minute.
• Infection Control: Easy to clean with minimal bacteria entrapment areas.

Specifications:

• Overall Height: 45 in / 1,135 mm
• Back Height: 30 in / 750 mm
• Seat Height: 21 in / 540 mm
• Inside Back Width: 20 in / 505 mm
• Overall Length: 53 in / 1,350 mm
• Reclined Length: 67 in / 1,700 mm
• Seat Depth: 19 in / 480 mm
• Leg Rest Length: 16.5 in / 420 mm
• Clearance Height: 3 in / 75 mm
• Chair Weight (Unloaded): 147.71 lb / 67 kg
• User Weight Limit: 364 lb / 159 kg

Available Seat and Overall Widths:

• Seat Width / Overall Width:
  • 15 in / 380 mm / 25 in / 635 mm*
  • 18 in / 450 mm / 27 in / 690 mm*
  • 20 in / 500 mm / 27 in / 690 mm*
  • 22 in / 550 mm / 29 in / 740 mm*
  • 24 in / 600 mm / 31 in / 790 mm*
  • *Dimension includes leg rest belt. Deduct 1.5 in / 35 mm if the belt is not used.

Arm Height Options:

• Medium: 25 in / 630 mm
• High: 26 in / 660 mm

Recline and Tilt Angles:

• Back Angle Recline: 110° – 140° (30° range)
• Leg Rest Angle: 75° – 107° (32° range)
• Integrated Tilt and Recline: 54° – 74° (20° range)
