ArjoHuntleigh Parker Bath System

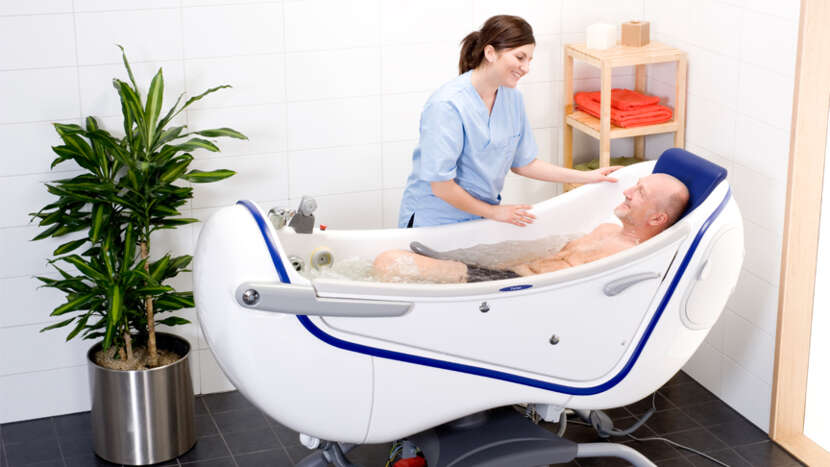

The Arjo Parker bath has a swing-up side door so residents can get in and out on their own or with help. It is height-adjustable and moves from a sitting to a reclining position, letting caregiver and resident pick a comfortable position. Residents at mobility levels A to C can use it without a separate bath lift; level D residents can use it with a passive ceiling lift.

Scald protection includes clear temperature displays, mixing valves that regulate temperature and pressure, and a hot-water cut-off. Residents can choose a still soak, the Air Spa or the Sound and Vision option.

Features

• Swing-up side door for independent or assisted entry
• Height-adjustable; sits or reclines
• Several levels of scald protection
• Still bathing, Air Spa or Sound and Vision
• For Arjo mobility levels A to C, and D with a passive lift

Specifications

• Patient weight limit: 463 lb
• Safe working load: 661 lb
• Weight: 280 lb
• Length: 77.12 in
• Width: 29.5 in
• Seat height: 22.25 to 27 in
• Water use: 60.8 gal
• Fill time at 43.5 psi: 1 min 42 s
• Drain time: 3 min
• Protection: IPX4 bath, IPX7 hand control
