Description

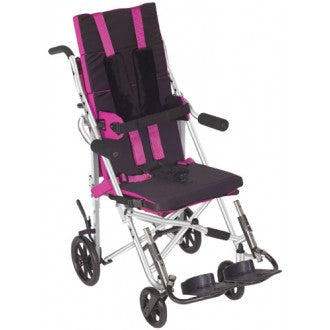

The Convaid Cruiser Planar comes equipped with a solid seat and back, firm lateral torso supports, and a contoured headrest. It provides a solid base of support to enhance posture and provide comfort for longer periods of sitting. The patented design is lightweight and compact. The Cruiser Planar is also upholstered in Darlex and Neoprene for a comfortable ride.
Note: image may show upgrades
Specifications
10-inch model | - |
Weight Capacity | 75 lbs. |
Weight | 19 lbs. |
Seat Width | 10″ |
Seat Depth | 8″ - 10″ |
Seat Back Height | 18″ |
Overall Width | 19″ |
Overall Height | 36″ |
Overall Length | 43″ |
Folded Length | 46″ |
Folded Width | 13″ |
Folded Height | 14″ |
Seat to Footplate | 7″ - 22″ |
Seat to Floor | 25″ |
Seat to Back Angle | 85°, 90°, 95° |
Seat Angle | 30° |
Headrest Extension | 5″ |
Shoulder Strap Height | 12″ - 18″ |
Tire Size | 6″ front, 8″ rear solid |
12-inch model | - |
12-inch - Weight Capacity | 75 lbs. |
12-inch - Weight | 19 lbs. |
12-inch - Seat Width | 12″ |
12-inch - Seat Depth | 8″ - 10″ |
12-inch - Seat Back Height | 18″ |
12-inch - Overall Width | 21″ |
12-inch - Overall Height | 36.5″ |
12-inch - Overall Length | 44.5″ |
12-inch - Folded Length | 46″ |
12-inch - Folded Width | 13″ |
12-inch - Folded Height | 14″ |
12-inch - Seat to Footplate | 10″ - 22″ |
12-inch - Seat to Floor | 24″ |
12-inch - Seat to Back Angle | 85°, 90°, 95° |
12-inch - Seat Angle | 30° |
12-inch - Headrest Extension | 5″ |
12-inch - Shoulder Strap Height | 12″ - 18″ |
18-inch - Tire Size | 8″ front, 11″ rear solid |
14-inch model | - |
14-inch - Weight Capacity | 100 lbs. |
14-inch - Weight | 21 lbs. |
14-inch - Seat Width | 14″ |
14-inch - Seat Depth | 10″ - 13″ |
14-inch - Seat Back Height | 23.5″ |
14-inch - Overall Width | 23″ |
14-inch - Overall Height | 36″ |
14-inch - Overall Length | 36″ |
14-inch - Folded Length | 46.5″ |
14-inch - Folded Width | 14″ |
14-inch - Folded Height | 14″ |
14-inch - Seat to Footplate | 11″ - 23″ |
14-inch - Seat to Floor | 24″ |
14-inch - Seat to Back Angle | 85°, 90°, 95° |
14-inch - Seat Angle | 30° |
14-inch - Headrest Extension | 8″ |
14-inch - Shoulder Strap Height | 15″ - 21″ |
16-inch model | - |
16-inch - Weight Capacity | 170 lbs. |
16-inch - Weight | 24.5 lbs. |
16-inch - Seat Width | 16″ |
16-inch - Seat Depth | 11″ - 14″ |
16-inch - Seat Back Height | 26″ |
16-inch - Overall Width | 26″ |
16-inch - Overall Height | 37.5″ |
16-inch - Overall Length | 39.5″ |
16-inch - Folded Length | 48″ |
16-inch - Folded Width | 14″ |
16-inch - Folded Height | 15″ |
16-inch - Saet to Footplate | 12″ - 24″ |
16-inch - Seat to Floor | 24″ |
16-inch - Seat to Back Angle | 85°, 90°, 95° |
16-inch - Seat Angle | 30° |
16-inch - Headrest Extension | 8″ |
16-inch - Shoulder Strap Height | 15.5″ - 22.5″ |
18-inch model | - |
18-inch - Weight Capacity | 250 lbs. |
18-inch - Weight | 30 lbs. |
18-inch - Seat Width | 18″ |
18-inch - Seat Depth | 14″ - 17″ |
18-inch - Seat Back Height | 26″ |
18-inch - Overall Width | 28″ |
18-inch - Overall Height | 38″ |
18-inch - Overall Length | 40″ |
18-inch - Folded Length | 48″ |
18-inch - Folded Width | 15″ |
18-inch - Folded Height | 16.5″ |
18-inch - Seat to Footplate | 13″ - 25″ |
18-inch - Seat to Floor | 24.5″ |
18-inch - Seat to Back Angle | 85°,90°, 95° |
18-inch - Seat Angle | 30° |
18-inch - Headrest Extension | 8″ |
18-inch - Shoulder Strap Height | 16″ - 22″ |
Medicare HCPCS Code | E1236 |
Warranty | Limited lifetime warranty |
Features
- 30° fixed tilt
- 85° - 95° adjuistable seat-to-back angle
- "Umbrella style” compact fold
- Comprehensive positioning
- Multiple frame adjustments
- Removable fabric
- Crash-tested transit model available
- Solid seat & back for comfort and positioning
- Comprehensive positioning
- Safe, durable and convenient
- Made in the U.S.
- Free Shipping
