Description

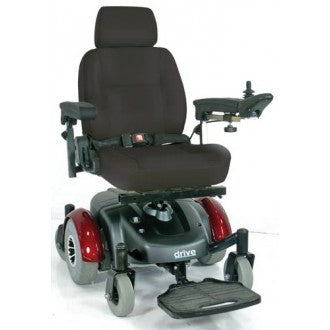

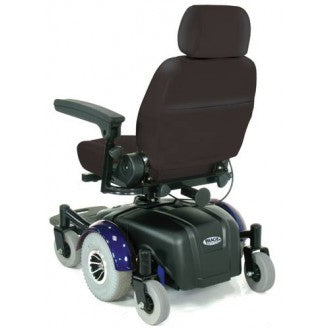

Drive's Image EC Powerchair is one of the finest in its class. The mid-wheel drive allows for a tighter turning radius, and the front swivel anti-tippers have true independent adjustable suspension to help prevent the drive wheels from losing contact with the ground. The mid-wheels are flat free including coil spring tension suspension. The uniquely designed Dynamic Drive suspension offers greater climbing ability and comfort when traveling forward and in reverse. The foot plate is angle, height, and depth adjustable.



The PG controller features diagnostic fault codes, and an on board charger makes charging the chair easy. The joystick can be mounted on either side of the chair to accommodate right and left-handed individuals. A positioning belt standard is included with the chair, and the arms are height, angle, and depth adjustable. The standard headrest is height adjustable.



For added comfort, the seat reclines, and for portability, the seat folds down. Has been tested and surpassed the ANSI RESNA testing requirement.

Specifications

Weight Capacity 300 lbs.
Product Weight 186 lbs.
Heaviest piece 88 lbs.
Seat Width 18"
Seat Depth 16"
Seat-to-Floor Height 17.5"
Overall Width 24"
Overall Length 42"
Overall Height 44.5"
Front Wheel Size 6"
Mid Wheel Size 10"
Rear Wheel Size 6"
Turning Radius 27.5"
Max Climbing Angle 8 degrees
Max Speed 4.5 mph
Driving Range 12.4 Miles, 18.6 Miles
Battery Type 12V 36Ah
Battery Weight 53 lbs.
HCPCS K0831
Warranty on Frame Lifetime Limited
Warranty on Batteries Three Months Limited

Features

  • Mid-wheel drive allows for tighter turning radius
  • PG controller with diagnostic fault codes
  • On board charger
  • Joystick can be mounted on either side
  • Front swivel anti-tippers have true independent adjustable suspension
  • Drive mid-wheels are flat free including coil spring tension suspension
  • Uniquely designed Dynamic Drive suspension for greater climbing ability and comfort when traveling forward and in reverse
  • Front and rear semi-pneumatic swivel wheels
  • Foot plate is angle, height and depth adjustable
  • 18" deluxe height adjustable swivel captain's seat
  • Arms are angle, height and depth adjustable
  • Standard headrest is height adjustable
  • Seat reclines for comfort and folds down for portability
  • Has been tested and surpassed the ANSI RESNA testing requirement

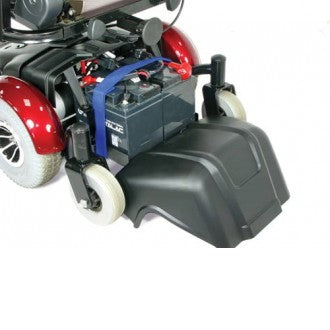

  • Batteries are accessible from the rear of the chair
