ArjoHuntleigh Sara Flex Sit to Stand Patient Lift

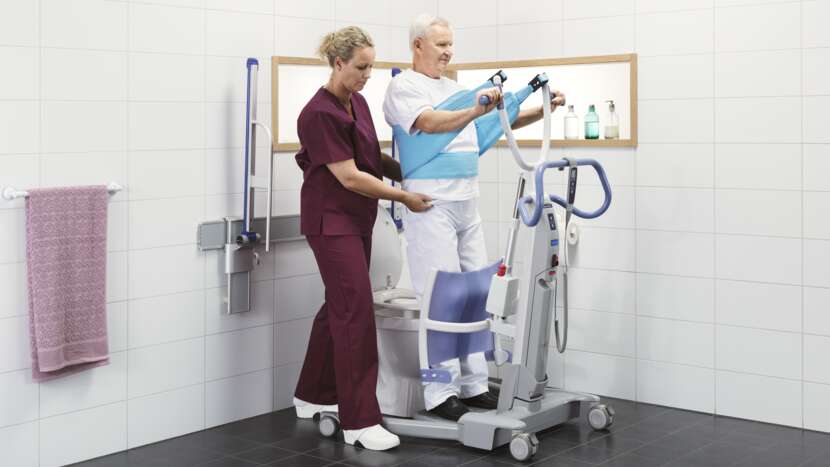

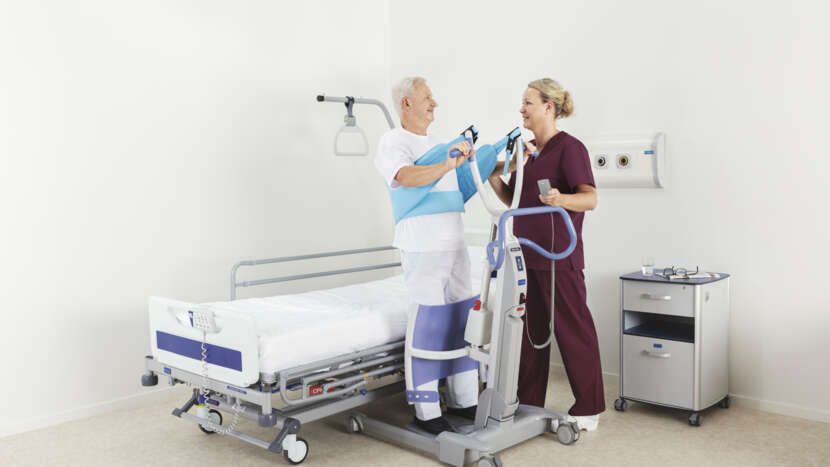

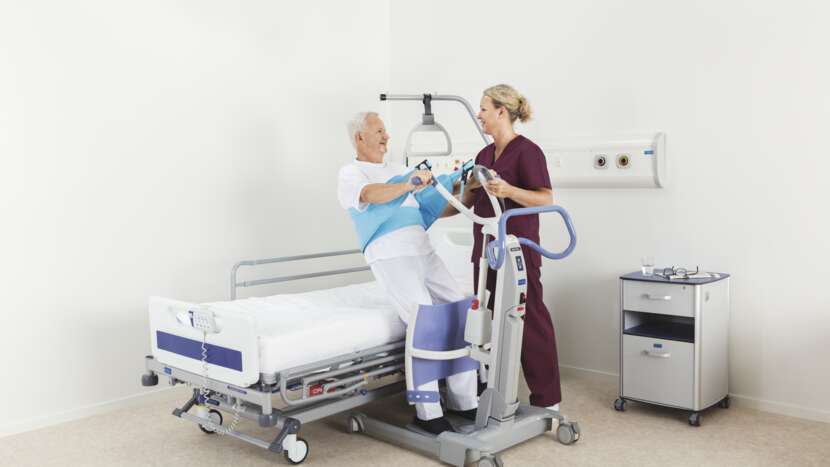

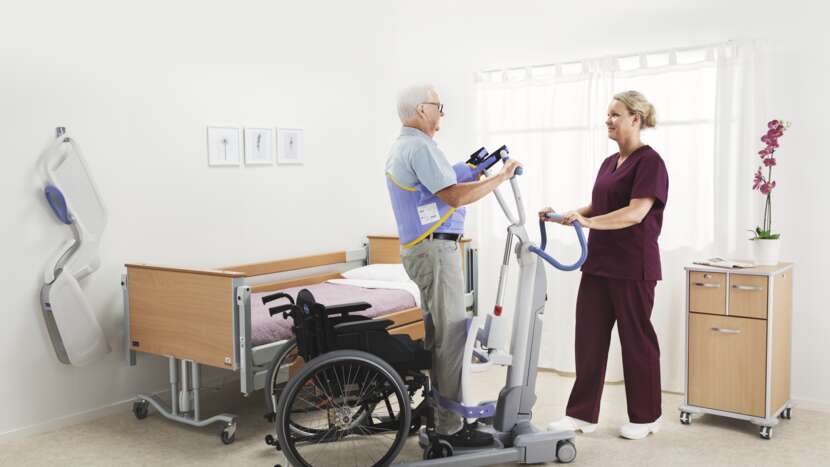

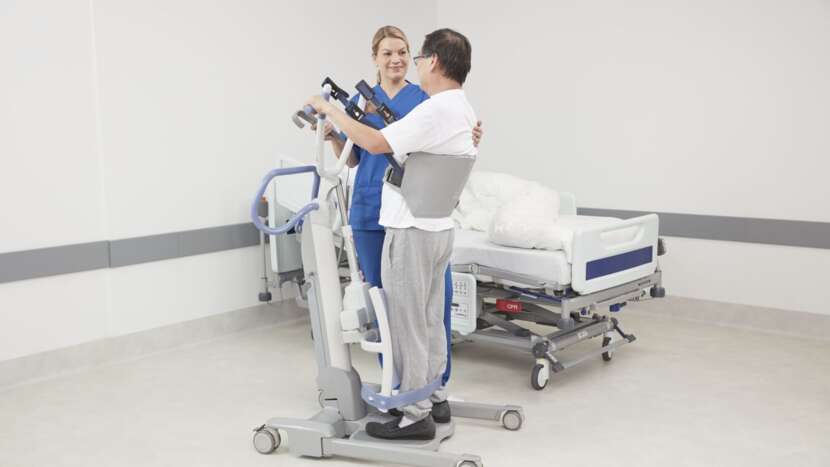

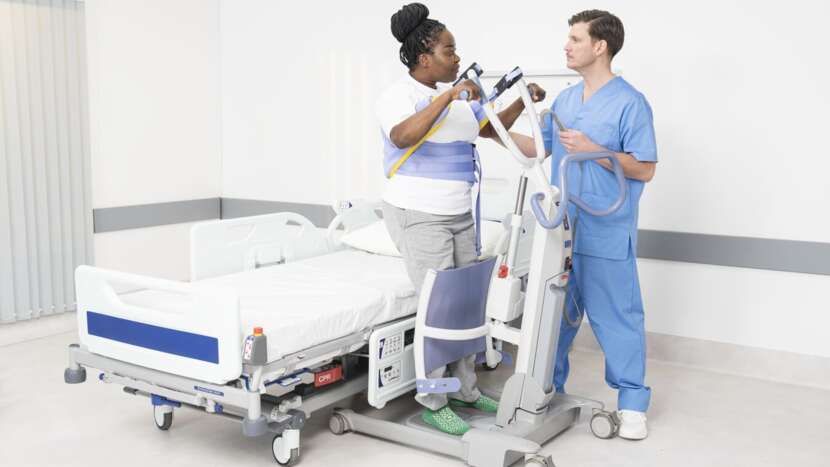

The Sara Flex® sit-to-stand lift is an innovative solution designed to assist a single caregiver in helping a patient or resident transition from a seated to a standing position in one natural movement. This device enhances patient support by promoting comfort and security throughout the sit-to-stand process. Its intuitive design requires no adjustments, making it ideal for various key transfers and care tasks. The Sara Flex® incorporates a forward movement mechanism paired with flexible leg supports to enable a natural and comfortable sit-to-stand transition. Additionally, it has been accredited by the Dementia Services Development Centre (DSDC) at the University of Stirling for its thoughtful design, earning a DSDC Product Accreditation Rating Class 1B.

Patient Support:

• Comfort and Security: Ensures patient comfort throughout the sit-to-stand movement.
• Ease of Use: Designed for single caregiver operation with no adjustments required.
• Natural Movement: Forward movement with flexible leg support for a comfortable transition.
• DSDC Dementia Design Accredited: Awarded Class 1B rating by the Dementia Services Development Centre.

Features and Benefits:

• Flexible Silicone Leg Support: Curved, soft surface supports lower legs and knees.
• Flexible Silicone Leg Strap: Multiple adjustment options for secure positioning.

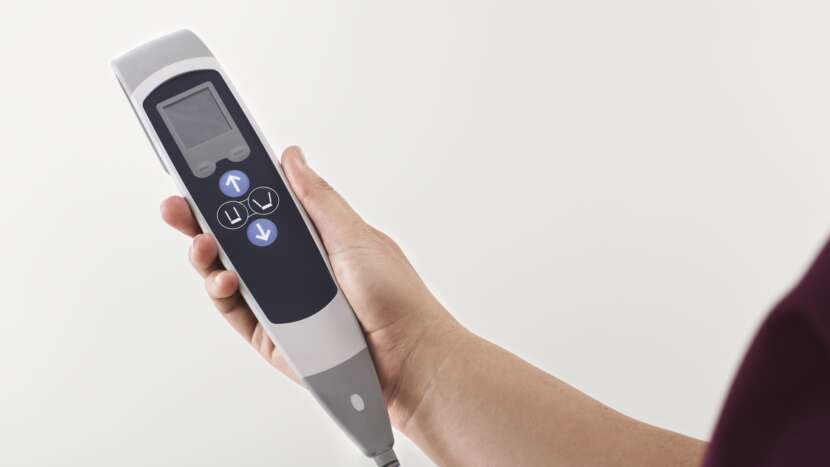

• Easy-to-Use Hand Control: Long flexible cord allows the caregiver to stay close to the patient.

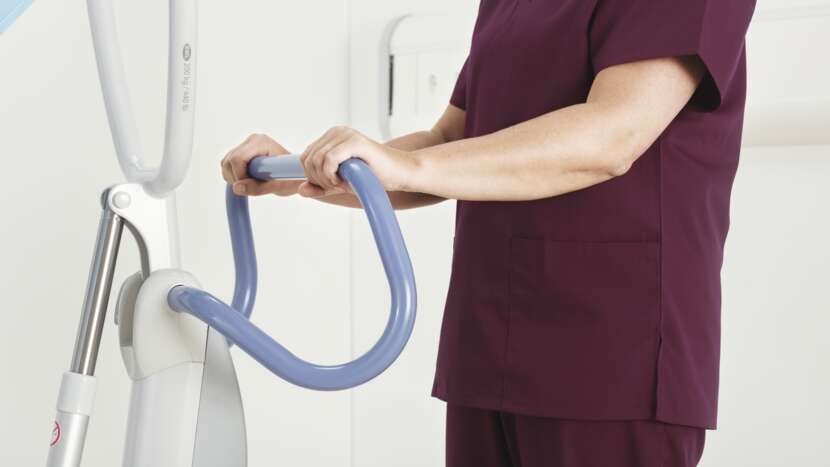

• Caregiver Handle: Curved design for flexible holding positions.

Specifications:

• Max Safe Working Load: 440 lbs (200 kg)
• Lift Weight (incl battery): 118 lbs (53.6 kg)
• Min/Max Storage Height: 45 3/4 in - 59 3/4 in (1162 mm - 1518 mm)
• Min/Max Lifting Height: 39 in - 59 3/4 in (991 mm - 1518 mm)
• External Width (legs closed/open): 26 in / 40 1/2 in (660 mm / 1029 mm)
• Internal Width (legs closed/open): 20 7/8 in / 35 3/8 in (530 mm / 899 mm)
• Leg Clearance: 4 1/4 in (108 mm)
• Chassis Clearance: 1 in (23 mm)
• Lift Total Length: 39 1/4 in (996 mm)
• Turning Radius: 47 1/2 in (1208 mm)

Electrical:

• Lifter Protection Class: IP24
• Hand Control Protection Class: IPX7
• Battery: 24V 4Ah with charge indicator
• Service Meter: Displays total usage time (hours)
• Safety Features: Emergency stop, system failure override, automatic safety cut out, low friction castors with rear brakes
