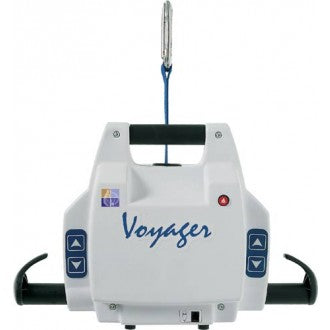

The Voyager Portable Lifter is the lightest portable lift on the market today, weighing only 12 lbs. with the battery and lifting up to 440 lbs..
The Voyager's lightweight design allows for portability and easy attachment to the optional Easytrack trolley. The smooth, quiet operation ensures the person being transferred is safe and comfortable. The patented Quick Release feature prevents having to lift the Voyager onto the rail, and saves time and battery power. Overhead ceiling lifts solve the problems that traditional floor-based lifts have presented, such as difficulty maneuvering over thick carpeting, turning in tight spots, and getting into and around bathrooms. Now, with the Guardian Voyager and Easytrack Lift, caregivers can easily transfer family members or loved ones from a bed to a wheelchair, wheelchair to bath or any where else within the range of the Easytrack System without permanently defacing their homes. Because the sytem is portable and can be setup without tools in as little as 5 minutes, it offers the flexibility to travel. The Voyager allows the sling to go all the way to the floor and up to a height of 48" for maximum lifting flexibility.
Weight w/ battery | 12 lbs. |
Shipping weight | 20 lbs. |
Weight capacity | 440 lbs. |
Width | 17.5″ |
Depth | 5.5″ |
Height | 11.25″ |
Shipping dimensions | 26″ x 16″ x 8″ |
Lifting speed | 1.6″ / sec. |
Strap length | 88″ |
Battery | Rechargeable: 24Vdc, 2.0Ah |
Transfers per charge | 10 - 30 |
Seat sling height | 0 - 48″ |
E2- Weight | 44 lbs. |
E2- Ship weight | 50 lbs. |
E2- Weight capacity | 440 lbs. |
E2- Rail weight (each) | 26.4 lbs. |
E2- Post weight (each) | 8.8 lbs. |
E2- Configuration | 2 Post |
E2- Ceiling plate length | 20″ |
E2- Floor plate | 4.8″ |
E2- Ceiling height range (length of post) | 84″ - 108″ |
E2- Length of rail | 74″ - 124.5″ |
E2- Minimum distance between posts | 75″ |
E2- Shipping dimensions | 74″ x 14″ x 4″ |
EW- Weight | 26.4 lbs. |
EW- Weight capacity | 440 lbs. |
EW- Configuration | 2 Wall mount |
EW- Length of rail | 74″ - 124.5″ |
EW- Minimum distance between wall mounts | 75″ |
EW- Ceiling height range (length of post) | 84″ - 108″ |
EW- Material | Anodized aluminum |
E3- Post weight (each) | 8.8 lbs. |
E3- Rail weight (each) | 26.4 lbs. |
E3- Weight capacity | 440 lbs. |
E3- Top rail length | 84″ - 124.5″ |
E3- Pole length | 20″ |
E3- Ceiling plate | 20″ |
E3- Floor plate | 4.8″ |
E3- Material | Anodized aluminum |
E3- Weight | 125 lbs. |
E3- Rail weight | 20 lbs. |
E3- Post weight | 8.8 lbs. |
E3- Shipping weight | 41 lbs. (3 boxes) 10 lbs. (1 box) |
E3- Shipping dimensions (box 1) | 16″ x 10″ x 7″ (1 box) |
E3- Shipping dimensions (box 2) | 120″ x 4″ x 3″ (3 boxes) |
E3- Ceiling plate length | 20″ |
E3- Ceiling height range (length of post) | 84″ - 108″ |
E3- Minimum distance between posts w/ parallel rails | 118″ |
E3- Configuration | 4 Post |
E2B- Weight | 44 lbs. |
E2B- Shipping weight | 41 lbs. per box |
E2B- Rail weight | 26.4 lbs. |
E2B- Post weight (each) | 8.8 lbs. |
E2B- Weight capacity | 440 lbs. |
E2B- Shipping dimensions | 74″ x 14″ x 4″ (two boxes) |
E2B- Ceiling plate length | 20″ |
E2B- Floor plate | 4.8″ |
E2B- Ceiling height range (length of post) | 84″ - 108″ |
E2B- Length of bath post | 67″ - 90.5″ |
E2B- Length of rail | 74″ - 124.5″ |
E2B- Minimum distance between posts | 75″ |
E2B- Configuration | 2 Post with bath bracket |
E3B- Weight | 93.5 lbs. |
E3B- Shipping weight (each box) | 41 lbs. (3 boxes) |
E3B- Rail weight | 26.4 lbs. |
E3B- Post weight (each) | 8.8 lbs. |
E3B- Weight capacity | 440 lbs. |
E3B- Shipping dimensions | 74″ x 14″ x 4″ |
E3B- Ceiling plate length | 20″ |
E3B- Floor plate | 4.8″ |
E3B- Ceiling height range (length of post) | 84″ - 108″ |
E3B- Minimum distance between 2 posts | 75″ |
E3B- Length of bath post | 67″ - 90.5″ |
E3B- Length of bath rail | 53″ - 65″ |
E3B- Configuration | 3 Post with bath bracket |
