Joerns Hoyer HML400 Classic Manual Patient Lift with Pump Handle | Safe working load 400 lbs.| Ergonomic Pump Handle | Adjustable U-base
This option is sold out. Call 1-877-861-8000 about availability or replacement parts.
- Secure checkoutPayments are processed through Shopify's secure checkout.
- Free shipping on US orders of $50+
- Not returnableBeds and lifts, including hospital beds and patient lifts, are not eligible for return. Returns policy
- Questions before you order? Call 1-877-861-8000Mon to Fri, 9 AM to 6 PM Pacific · Email us

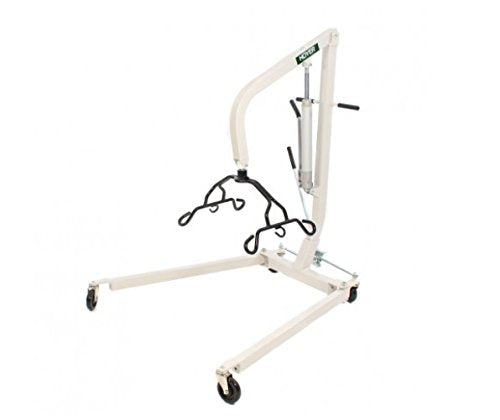

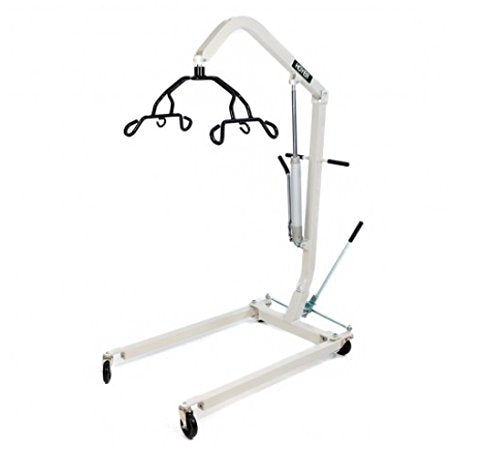

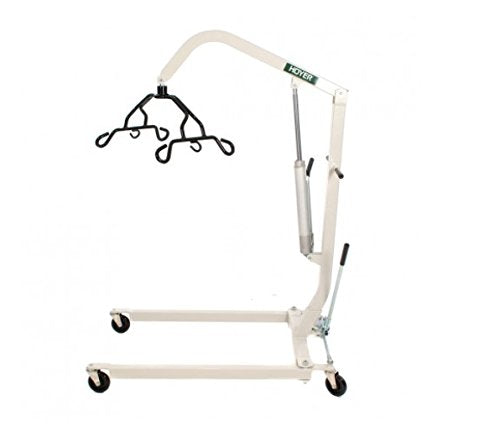

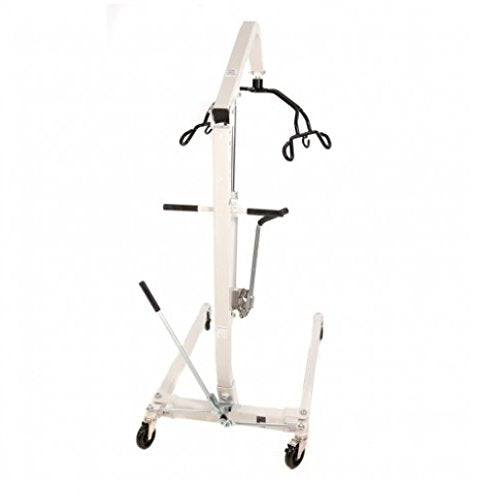

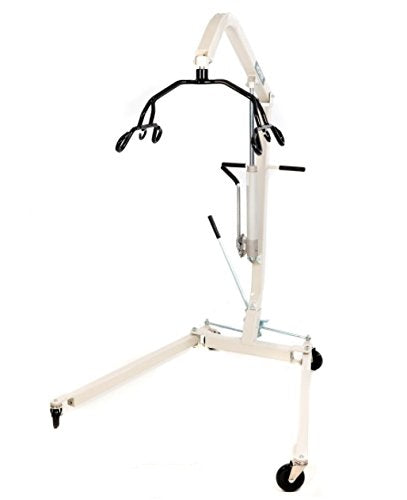

The Joerns Hoyer HML400 Classic is a manual hydraulic floor lift with an angular frame and a non-sway cradle. Safe working load is 400 pounds. Height travel reaches the floor, so a person can be picked up from there. A caregiver raises the boom with a hydraulic pump.
- 400 lb safe working load
- Boom range 28 to 77 inches, with floor pick-up
- Non-sway 6-point cradle; listed for Hoyer 4-point and traditional slings
- Adjustable U-base legs that lock; 5.5 in base clearance
- Pump handle rotates to either side
- Disassembles for storage; shipping weight 96 lb
Pairs well with
Overview
- 400 lb safe working load
- Boom range 28 to 77 inches
- Non-sway 6-point cradle
- Floor pick-up height travel
- U-base legs lock in position
- Pump handle rotates to either side
Details
Cradle and slings
The cradle is a 6-point, non-sway design. The listing states that it fits Hoyer 4-point slings as well as traditional slings. Match the sling to this cradle and to the person's size.
Dimensions, base and pump
Boom range is 28 to 77 inches. Width is 24 to 40.5 inches, and length is 43.5 inches. Height to the attachment point is up to 61.5 inches. Base clearance is 5.5 inches. The U-base is hand operated and the legs lock in position; inside width open is 38 inches, and outside width closed is 24.25 inches. The pump handle turns so it can be worked from the left or the right. The lift disassembles for storage. Shipping weight is listed at 96 pounds.
Specs
| Brand | Joerns / Hoyer |
|---|---|
| Model | HML400 Classic |
| Type | Manual hydraulic floor lift |
| Safe working load | 400 lb |
| Width | 24 to 40.5 in |
| Length | 43.5 in |
| Boom lift range | 28 to 77 in |
| Base clearance | 5.5 in |
| Height to attachment point | Up to 61.5 in |
| Legs open, inside | 38 in |
| Legs closed, outside | 24.25 in |
| Base opening | Hand operated |
| Cradle | Non-sway 6-point; fits Hoyer 4-point and traditional slings |
| Shipping weight | 96 lb |
Questions about this product
What makes the HML400 Classic's cradle and boom range useful?
This Classic listing describes a non-sway cradle and a boom that travels from 28 inches to 77 inches. Height travel reaches the floor, so a person can be picked up from there. The 6-point cradle is listed as fitting Hoyer 4-point slings as well as traditional slings. Safe working load is 400 pounds.
How wide and long is the lift, and how does the U-base work?
Width is listed from 24 to 40.5 inches, and length is 43.5 inches. The U-base legs are hand operated and lock into position, which the listing describes as helpful for seating or toileting approaches. Inside width with the legs open is 38 inches; outside width with the legs closed is 24.25 inches. Base clearance is 5.5 inches.
Can it pick someone up from the floor, and how high does the attachment reach?
Yes. The listing states that height travel reaches the floor for a floor pick-up. The boom range is 28 to 77 inches, and height to the attachment point is listed at up to 61.5 inches. A compatible sling and a caregiver trained in safe patient handling are required for that transfer, as with any floor lift.
How does the pump handle work, and can the lift be stored in pieces?
The hydraulic pump handle is described as ergonomic and as rotating so it can be used from either side of the lift. The unit disassembles for storage. Shipping weight is listed at 96 pounds. This is a manual hydraulic model; there is no battery or handset on the HML400 Classic.
How does this Classic listing differ from the other HML400 on this site?
Both identify the Joerns Hoyer HML400, a 400-pound manual hydraulic floor lift with a pump handle that turns to either side. This Classic page adds the non-sway 6-point cradle, the 28- to 77-inch boom range, base clearance, and the locked U-base dimensions. Use this page when you need those figures. For help comparing them, call 1-877-861-8000 on weekdays between 9 AM and 6 PM Pacific.
