ArjoHuntleigh EasyTrack® Portable Ceiling Lift Tracking Systems

The EasyTrack® Portable Ceiling Lift Tracking Systems offer versatile and portable solutions for patient transfers without requiring permanent installation. These systems are designed to provide ease of use, flexibility, and stability, making them ideal for temporary or multiple location use. Available in two variations: 2 Post Pressure Fit and 4 Post X-Y Pressure Fit systems.

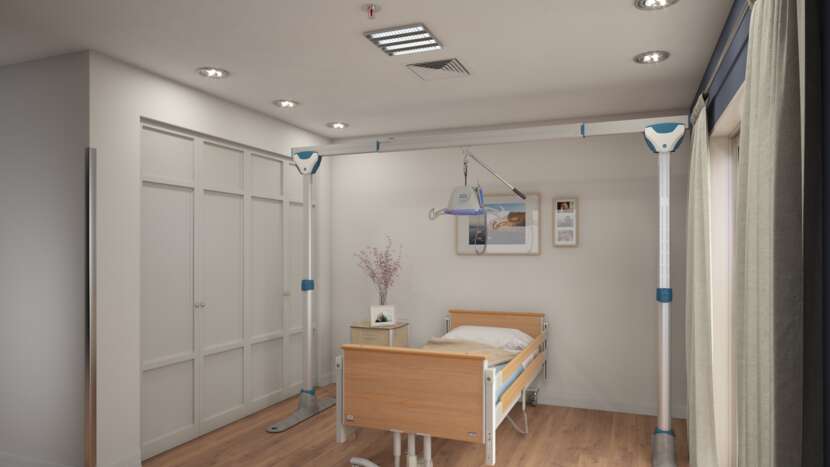

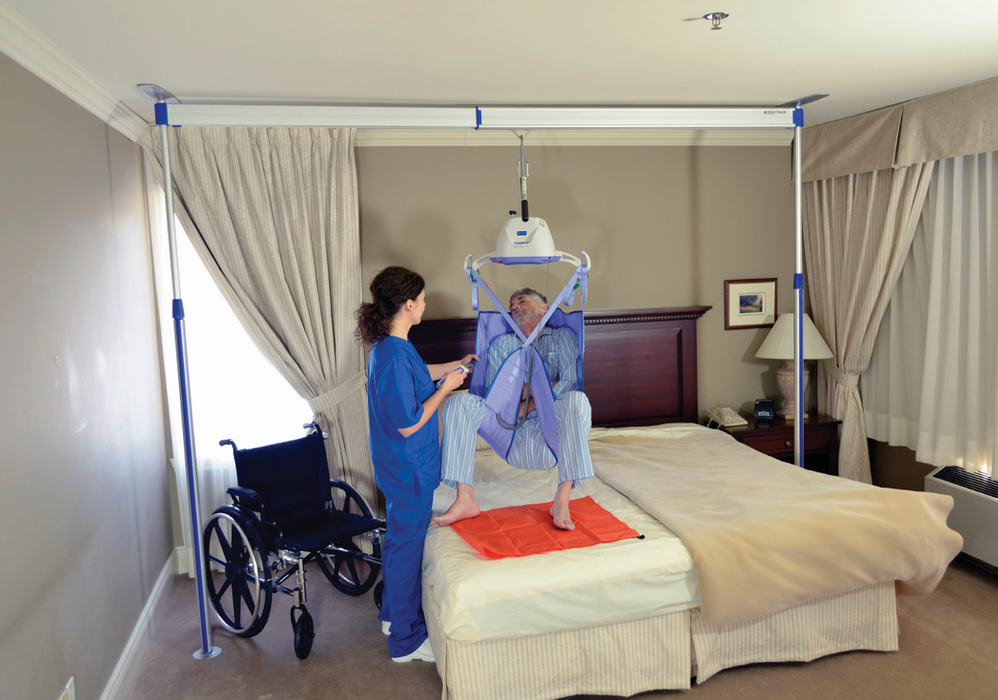

EasyTrack® 2 Post Pressure Fit System

Key Features:

• Portability: Easily moved and reassembled without tools.
• Pressure Fit System: No ceiling or wall attachments required.
• Stability: Stable and secure transfer system.
• Flexibility: Suitable for vertical transfers over beds and other surfaces.

Specifications:

• Maximum Safe Working Load (SWL): 200 kg (440 lbs)
• Weight: 20 kg (44 lbs)
• Rail Length: 1900 - 3160 mm (74” to 124½”)
• Post Length: 2130 - 2745 mm (84” to 108”)
• Material: Anodized Aluminum
• Ceiling Plate: 510 mm (20”)
• Floor Plate: 120 mm (4.8”)
• Compliance: ISO 10535:2006

Kit Contents:

• Extendable rail with standard trolley
• Standard posts
• Post strips
• Round foot plates
• Clip-on level
• Top plates
• Easytrack end caps
• Allen key
• Reacher
• Easytrack transport bag

Approvals:

• CSA No 601.1
• UL No 2601-1 certifications
• IEC-60601
• CE marked / ISO 10535
• TÜV
• EUMDR

Warranty:

• 1-year manufacturer warranty, with possible extensions available

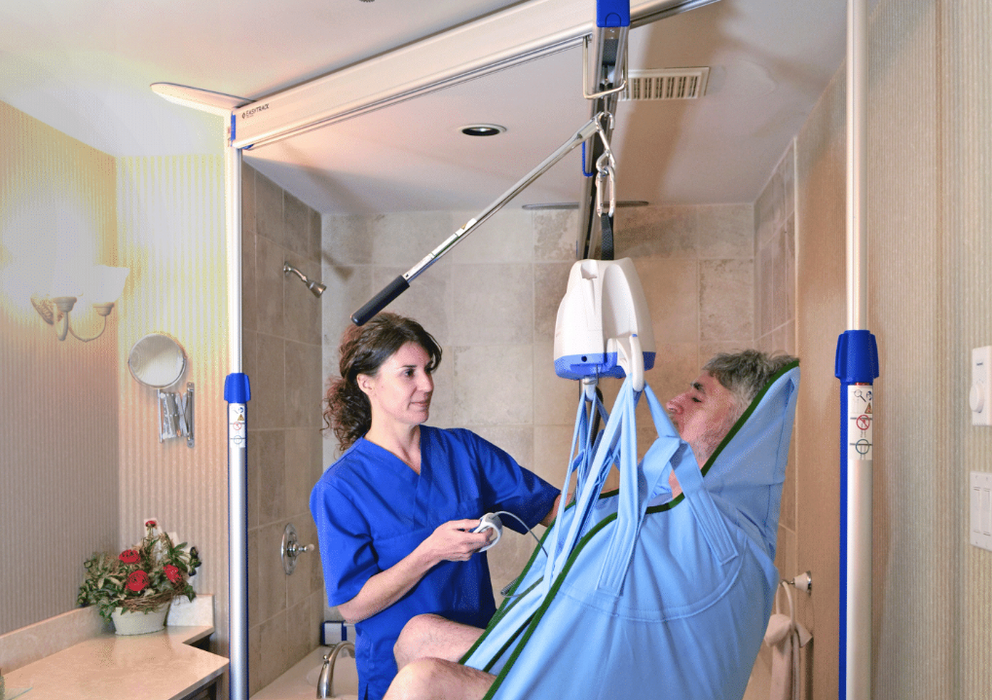

EasyTrack® 3 Post Pressure Fit System

Key Features:

• Portability: Easily moved and reassembled without tools.
• Pressure Fit System: No ceiling or wall attachments required.
• Stability: Stable and secure transfer system with pivoting track.
• Flexibility: Suitable for vertical transfers with straight line lifting within the pivoting track area.

Specifications:

• Maximum Safe Working Load (SWL): 200 kg (440 lbs)
• Weight: 42.5 kg (93.5 lbs)
• Rail Length (fixed): 1900 - 3160 mm (74” to 124½”)
• Post Length (pivoting): 1900 - 3160 mm (74” to 124½”)
• Post Length: 2130 - 2745 mm (84” to 108”)
• Material: Aluminum
• Ceiling Plate: 510 mm (20”)
• Floor Plate: 120 mm (4.8”)
• Compliance: ISO 10535:2006

Kit Contents:

• Pivoting extendable track with trolley
• Extendable track with swivel trolley
• Pivoting post assembly
• Pivoting hooking tube assembly
• Standard posts
• Round endcaps
• Allen key 6mm
• Clip-on level
• Top plate for posts
• Round foot plates
• Plastic post strips (2 pieces)
• Protector for track
• Extendable track with trolley
• Easytrack transport bag
• Reacher (610 mm and 910 mm)

Approvals:

• CSA No 601.1
• UL No 2601-1 certifications
• IEC-60601
• CE marked / ISO 10535
• TÜV
• EUMDR

Warranty:

• 1-year manufacturer warranty, with possible extensions available

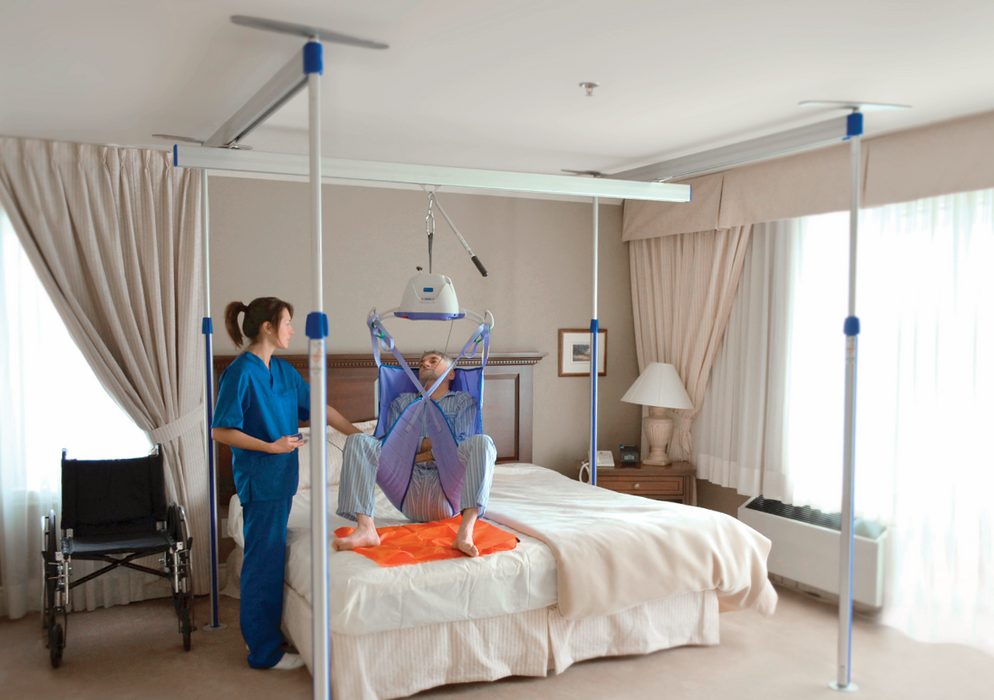

EasyTrack® 4 Post X-Y Pressure Fit System

Key Features:

• Portability: Can be easily moved and reassembled.
• X-Y Axis Movement: Allows for optimal lifting options anywhere within the transfer area.
• Pressure Fit System: No need for permanent installation.
• Flexibility: Ideal for patient transfers in different locations.

Specifications:

• Maximum Safe Working Load (SWL): 200 kg (440 lbs)
• Weight: 57 kg (125 lbs)
• Range:
  • Length of Rail: 3000 mm (118”)
  • Length of Post: 2130 - 2745 mm (84” to 108”)
• Material: Aluminum
• Ceiling Plate: 510 mm (20”)
• Floor Plate: 120 mm (4.8”)
• Compliance: ISO 10535:2006

Kit Contents:

• X-Y Tracks
• Standard and mobile trolleys
• Round foot plates
• Top plates
• Post strips
• Clip-on level
• Endcaps
• Reacher
• Drilling JIG for track hook
• Allen keys
• Easytrack transport bag

Approvals:

• CSA No 601.1
• UL No 2601-1 certifications
• IEC-60601
• CE marked / ISO 10535
• TÜV
• EUMDR

Warranty:

• 1-year manufacturer warranty, with possible extensions available
