Joerns Hoyer Advance Portable Patient Lift | Hydraulic Power | Lightweight and Robust | Safe Working Load 340 Lbs.
This option is sold out. Call 1-877-861-8000 about availability or replacement parts.
- Secure checkoutPayments are processed through Shopify's secure checkout.
- Free shipping on US orders of $50+
- Not returnableBeds and lifts, including hospital beds and patient lifts, are not eligible for return. Returns policy
- Questions before you order? Call 1-877-861-8000Mon to Fri, 9 AM to 6 PM Pacific · Email us

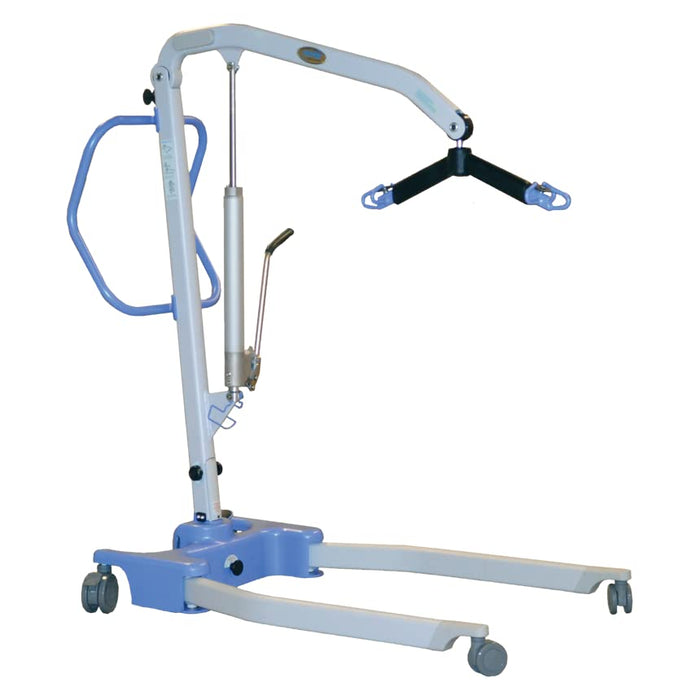

The Hoyer Advance-H from Joerns is the hydraulic model of the Advance portable floor lift. The frame is aluminum and folds without tools. Safe working load is 341 pounds (155 kilograms). It can lift a person from the floor or onto a bed.
- 341 lb (155 kg) safe working load
- Aluminum frame that folds without tools
- Folded size 46.5 × 21.7 × 17.7 inches

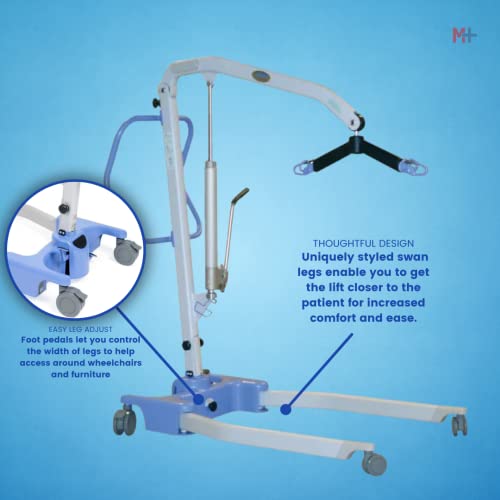

- Tapered swan-neck legs for wide chairs, commodes and wheelchairs
- Push pad to help start movement
- Floor-to-bed transfers; tested to EN ISO 10535
Pairs well with
Overview
- 341 lb safe working load
- Aluminum frame that folds without tools
- Folds to 46.5 × 21.7 × 17.7 in
- Tapered swan-neck legs
- Lifts from the floor onto a bed
- Tested to EN ISO 10535
Use this lift only if you have training in safe transfers, and only with a sling that fits both the person and this model.
Details
Legs, push pad and folded size

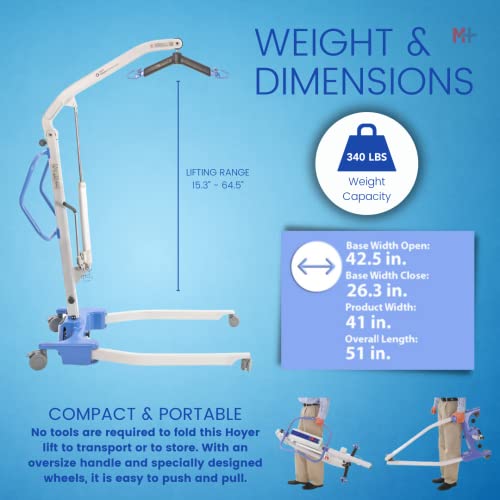

Tapered, swan-neck legs are meant to come in close around wide chairs, commodes and wheelchairs. A push pad helps the caregiver start the lift moving. Folded size is listed at 46.5 inches deep, 21.7 inches wide, and 17.7 inches high. In use, overall length is 49.2 to 51.2 inches and overall height is 53.5 to 73.2 inches.
Standard
The lift is listed as tested to EN ISO 10535. This H model uses a hydraulic pump; the Advance-E is the powered counterpart on the same platform.
Specs
| Brand | Joerns / Hoyer |
|---|---|
| Model | Advance-H (hydraulic) |
| Type | Portable hydraulic floor lift |
| Safe working load | 341 lb (155 kg) |
| Frame | Aluminum |
| Overall length | 49.2 to 51.2 in (1250 to 1300 mm) |
| Overall height | 53.5 to 73.2 in (1360 to 1860 mm) |
| Folded size | 46.5 in deep × 21.7 in wide × 17.7 in high |
| Folding | Folds without tools |
| Standard | Tested to EN ISO 10535 |
Videos
Questions about this product
What is the Hoyer Advance-H, and what is its safe working load?
The Advance-H is the hydraulic version of Joerns' Hoyer Advance, a portable aluminum floor lift. Safe working load is listed at 341 pounds (155 kilograms). It folds without tools for storage, and it can lift a person from the floor or onto a bed. A compatible sling, sized for the person, and a trained caregiver are required.
How small does it fold, and what are the other dimensions?
When folded, the Advance is listed at 46.5 inches deep, 21.7 inches wide, and 17.7 inches high. Overall length in use is 49.2 to 51.2 inches, and overall height is 53.5 to 73.2 inches. The aluminum frame is what keeps the unit light enough to fold and store in a smaller space than a typical steel floor lift.
Why are the legs tapered, and what is the push pad for?
Tapered, swan-neck legs are designed to come in close around wide chairs, commodes and wheelchairs, so the lift can get nearer to the person before the sling is attached. A push pad on the frame helps the caregiver start the lift moving. Together with the folding aluminum frame, that geometry is what this model is built around.
Can the Advance-H lift someone from the floor?
Yes. The listing says the Advance-H can move a person off the floor and up onto a bed. Overall height runs from 53.5 inches to 73.2 inches. As with any floor lift, a compatible sling and a caregiver trained in safe patient handling are required for a floor pick-up. The hydraulic pump, not a battery, raises the boom on this H model.
How does the hydraulic Advance-H differ from the electric Advance-E?
Both share the same Advance platform: a folding aluminum frame, a 341-pound safe working load, and tapered swan-neck legs. On the Advance-H, a caregiver works a hydraulic pump to raise the boom. The Advance-E is the battery-powered version of the same lift, sold separately. The choice is about the lifting mechanism; folded size and load rating are the same in the listing.
